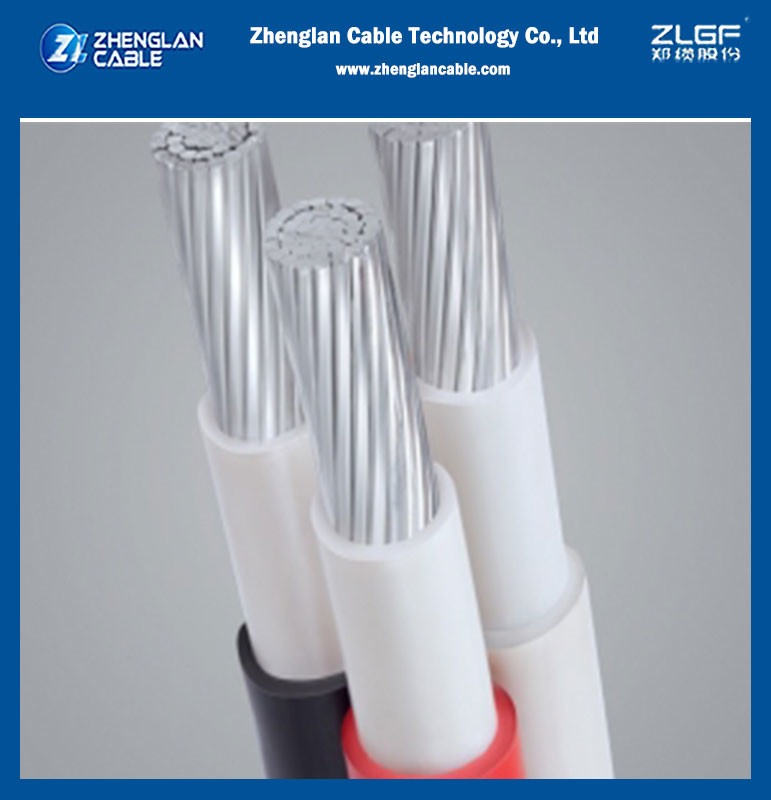

1kv Low Voltage Electrical Copper Conductor XLPE Aluminum Power Cable
Construction:
Conductors: Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation:
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Parameters:
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal PVC Sheath Thickness | Overall Diameter (Approx.) | Weight of Cable (Approx.) |
| mm² | mm | mm | mm | mm | Kg/Km |
| 1x1.5 | 1.6 | 0.7 | 1.4 | 6.0 | 50 |
| 1x2.5 | 2.0 | 0.7 | 1.4 | 6.5 | 70 |
| 1x4 | 2.25 | 0.7 | 1.4 | 7.0 | 80 |
| 1x6 | 2.76 | 0.7 | 1.4 | 7.5 | 110 |
| 1x10 | 4.0 | 0.7 | 1.4 | 8.5 | 150 |
| 1x16 | 5.0 | 0.7 | 1.4 | 9.5 | 215 |
| 1x25 | 6.3 | 0.9 | 1.4 | 11.5 | 315 |
| 1x35 | 7.4 | 0.9 | 1.4 | 12.0 | 415 |
| 1x50 | 8.8 | 1.0 | 1.4 | 13.0 | 555 |
| 1x70 | 10.6 | 1.1 | 1.4 | 15.0 | 760 |
| 1x95 | 12.4 | 1.1 | 1.5 | 17.0 | 1025 |
| 1x120 | 14.0 | 1.2 | 1.5 | 18.5 | 1270 |
| 1x150 | 15 .5 | 1.4 | 1.6 | 21.5 | 1575 |
| 1x185 | 17.4 | 1.6 | 1.6 | 23.0 | 1955 |
| 1x240 | 20.3 | 1.7 | 1.7 | 26.0 | 2470 |
| 1x300 | 22.7 | 1.8 | 1.8 | 28.0 | 3155 |
| 1x400 | 25.4 | 2.0 | 1.9 | 32.0 | 4049 |
Pictures:
Test equipment:
About zhenglan cable:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
