AAC Verbena Overhead Bare Aluminum Conductor ASTM230 100% IEC

  • 1
  • 2

Brand Name : Zhenglan Cable

Model Number : Bare Aluminum conductor AAC Verbena Overhead bare conductor

Certification : 3C，ISO 9001:2015，ISO 14001:2005

Place of Origin : Henan, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 30,000 ton/year

Delivery Time : 15-30 days

Packaging Details : Fully wooden drum, steel wooden drum, fully steel drum or customized

Material : aluminium

Quality : 100% IEC Standards test

Standard : ASTM230/230M

Brand : Zhenglan Cable

Contact Now

Bare Aluminum conductor AAC Verbena Overhead bare conductor

Bare Aluminum conductor AAC Verbena Overhead bare conductor are made up of one or more strands of aluminium wire depending on the specific application. They are principally used in urban areas where spacing is short and the supports are close. They can be used in coastal regions owing to its high degree of corrosion resistance and is also used extensively within the Railway and Metro industries.



STANDARD

Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards



Technical data sheet Bare Aluminum conductor AAC Verbena Overhead bare conductor

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
Peachbell 6 13.3 7/1.56 4.68 36.6 2.53 2.1477 75
Rose 4 21.1 7/1.96 5.88 58.2 3.91 1.3606 99
Iris 2 33.6 7/2.47 7.41 92.6 5.99 0.8567 132
Pansy 1 42.4 7/2.78 8.34 116.6 7.3 0.6763 153
  1/0.0 53.5 7/3.12 9.36 147.2 8.84 0.5369 176
Aster 2/0.0 67.4 7/3.50 10.5 185.7 11.1 0.4267 203
Phlox 3/0.0 85 7/3.93 11.79 233.9 13.5 0.3384 234
Oxlip 4/0.0 107.2 7/4.42 13.26 295.2 17 0.2675 270
Valerian 250 126.7 19/2.91 14.55 348.6 20.7 0.2274 299
Sneezewort 250 126.7 7/4.80 14.4 348.8 20.1 0.2269 299
Laurel 266.8 135.2 19/3.01 15.05 372.2 22.1 0.2125 312
Daisy 266.8 135.2 7/4.96 14.88 372.3 21.4 0.2125 311
Peony 300 152 19/3.19 15.95 418.3 24.3 0.1892 335
Tulip 336.4 170.5 19/3.38 16.9 469.5 27.3 0.1686 359
Daffodil 350 177.3 19/3.45 17.25 487.9 28.4 0.1618 369
Canna 397.5 201.4 19/3.67 18.35 554.9 31.6 0.143 397
Goldentuft 450 228 19/3.91 19.55 627.6 35 0.126 429
Syringa 477 241.7 37/2.88 20.16 664.8 38.6 0.1192 444
Cosmos 477 241.7 19/4.02 20.1 664.8 37 0.1192 444
Hyacinth 500 253.3 37/2.95 20.65 696.8 40.5 0.1136 458
Zinnia 500 253.3 19/4.12 20.6 697.1 38.9 0.1134 458
Dahlia 556.5 282 19/4.35 21.75 775.8 43.3 0.1018 489
Mistletoe 556.5 282 37/3.12 21.84 775.7 44.3 0.1016 490
Meadowsweet 600 304 37/3.23 22.61 836.3 47.5 0.0948 511
Orchid 636 322.3 37/3.33 23.31 886.9 50.4 0.0892 530
Heuchera 650 329.4 37/3.37 23.59 907.4 51.7 0.0871 538
Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
Flag 700 354.7 61/2.72 24.48 975.8 57.1 0.0811 561
Varbena 700 354.7 37/3.49 24.43 975.7 55.4 0.0812 561

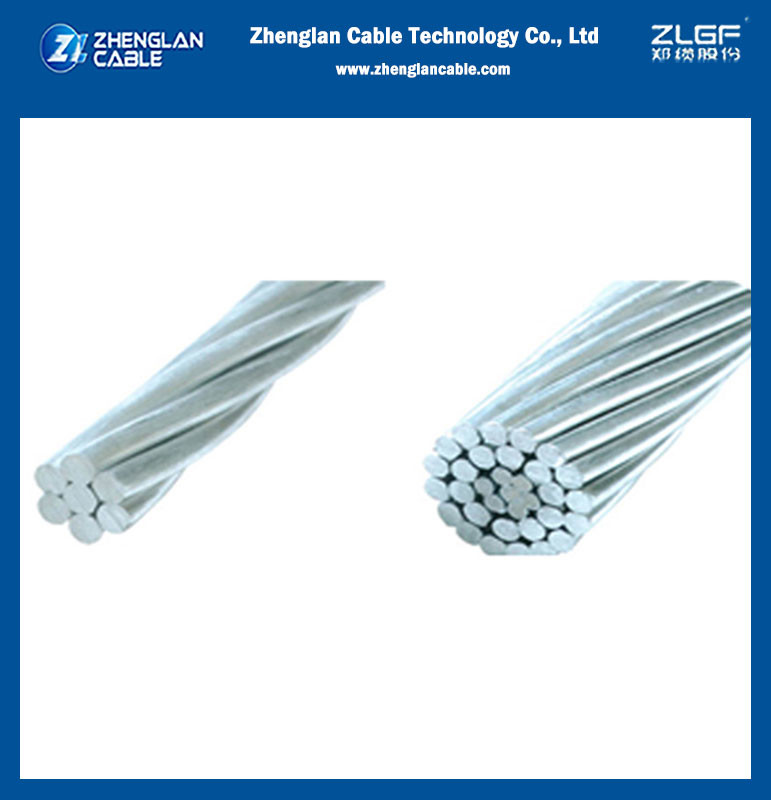

Bare Aluminum conductor AAC Verbena Overhead bare conductor ​ Product show

AAC Verbena Overhead Bare Aluminum Conductor ASTM230 100% IECAAC Verbena Overhead Bare Aluminum Conductor ASTM230 100% IEC

AAC Verbena Overhead Bare Aluminum Conductor ASTM230 100% IEC



Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
