35KV ABC Aerial Bundled Cable Overhead Power Cable

  • 1
  • 2

Brand Name : Zhenglan Cable

Model Number : Overhead insulated cable Conductor AL

Certification : ISO 9001:2015，ISO 14001:2005;

Place of Origin : Henan, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 15,000 km/Year

Delivery Time : 5-15 days

Packaging Details : Wooden drum, iron wooden drum or as required

Insulation : XLPE

Conductor Material : Aluminum

Application : Overhead insulated cable Conductor AL prot. tricapa 70mm2 35KV spaced aerial cable ICEA S-66-524

Quality : 100% test

Standard : IEC60502-2, ICEA S-66-524

structure : AAC/SC/XLPE/XLPE

Voltage : 35KV

Color : Black

Contact Now

35KV ABC cable Aerial bundled cable Overhead power cable

APPLICATION :
For used in primary aerial cable on pole.
CLASSIFICATION :
Temperature :
- Normal operation 90°C.
- Emergency over load conditions 130°C.
- Short circuit conditions 250°C. Voltage rating :
25 kV phase to phase.
AC TESTING VOLTAGE :
38 kV for 5 minutes
REFERENCE STANDARD :
TIS 2341-2555 / MEA / PEA

35KV ABC cable Aerial bundled cable Overhead power cable structure:
Conductor : Compact stranded hard drawn Aluminium wire. Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)


35KV ABC cable Aerial bundled cable Overhead power cable parameters

Nominal cross - sectional area
mm²		 Minimum number of wire
No.		 Diameter of
conductor (Approx.)
mm		 Thickness of
insulation
mm		 Thickness of
sheath
mm		 Overall diameter (Approx.)
mm		 Maximum DC.
conductor resistance at 20°C
Ω / km		 Minimum insulation resistance at 15.6°C
MΩ-km		 Allowable ampacities in free
air at 40°C ambient
A		 Cable weight (Approx.)
kg / km
mm² No. mm mm mm mm Ω / km MΩ-km A kg / km
50 6 8.0 4.45 3.18 25.5 0.641 2,606 184 517
70 12 9.8 4.45 3.18 27.5 0.443 2,375 227 599
95 15 11.4 4.45 3.18 29.0 0.320 2,144 276 711
120 15 12.9 4.45 3.18 31.0 0.253 1,952 318 831
150 15 14.1 4.45 3.18 32.5 0.206 1,830 367 933
185 30 15.8 4.45 3.18 33.5 0.164 1,694 425 1,073
240 30 18.3 4.45 3.18 36.5 0.125 1,529 515 1,293

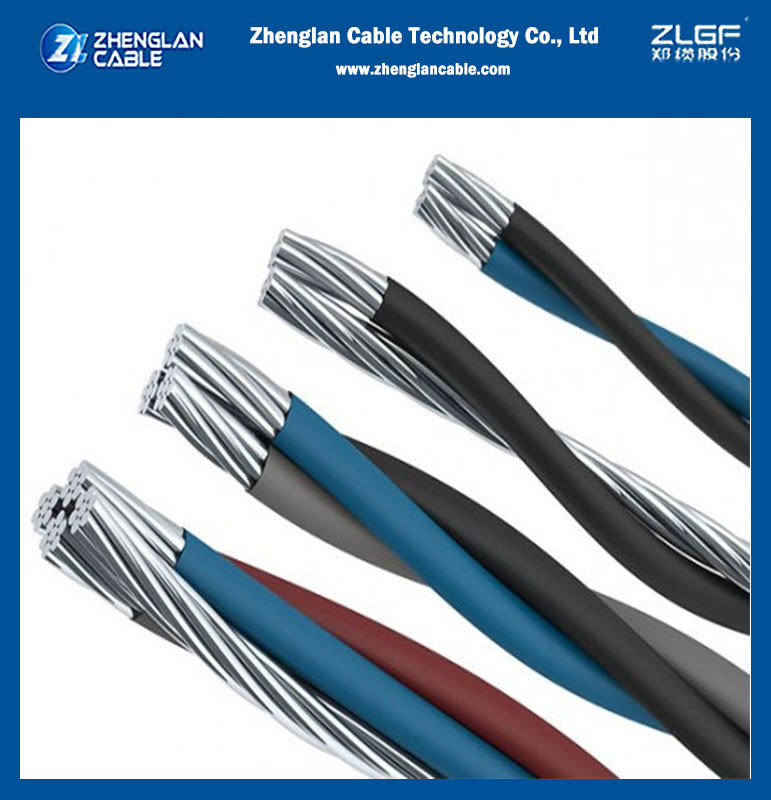

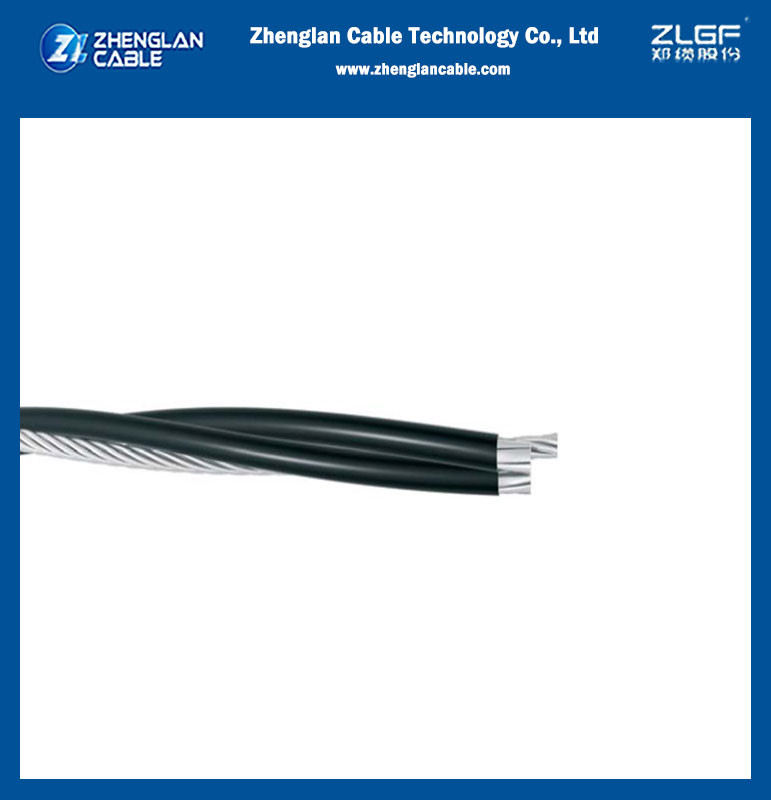

35KV ABC cable Aerial bundled cable Overhead power cable Images
35KV ABC Aerial Bundled Cable Overhead Power Cable35KV ABC Aerial Bundled Cable Overhead Power Cable

About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
35KV ABC Aerial Bundled Cable Overhead Power Cable
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
