Overhead Aluminum AAC AAAC ACSR Conductor XLPE Insulated Twisted Duplex Triplex Quadruplex ABC Cable
Application:
Overhead insulated cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Voltage rating is 600 volts. And this cable support Maximum operating temperature not to exceed 90°C in wet and dry locations.

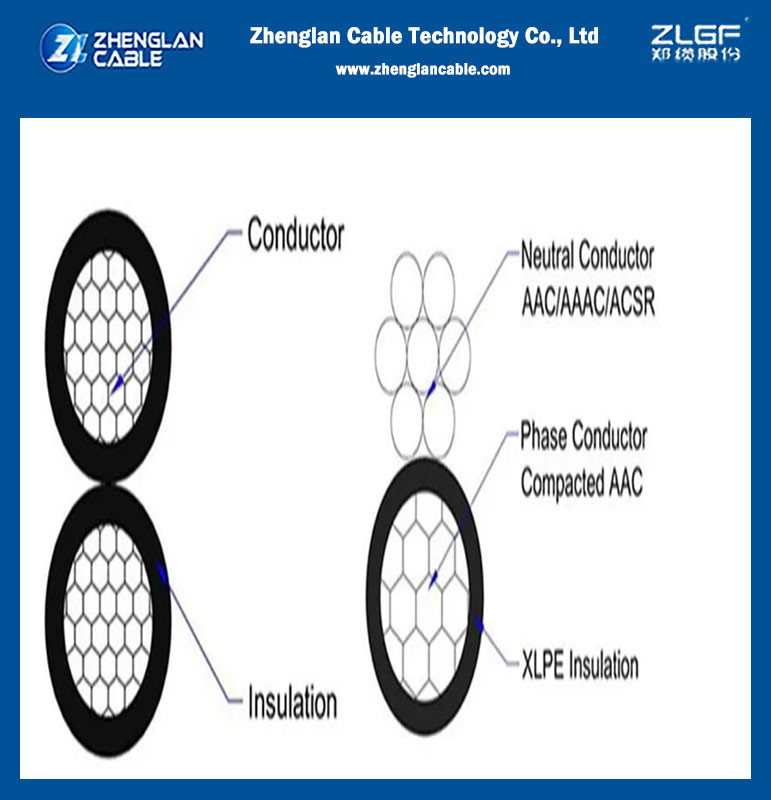

Structure
Phase cable Conductor material:AAC;
Phase cable Insulation material: XLPE;
Neutral conductor material:ACSR/AAAC/AAC
Neutral conductor insulation: XLPE
Temperature range
Minimum installation temperature: 0°C
Maximum operating temperature: +90°C
Minimum operating temperature: -25 °C
Minimum bending radius of circumscribed diameter
Installed cables: 6D ≤ 50 mm2, 9D ＞50 mm2, 4D Single Core
During installation: 9D ≥ 50 mm2, 14D ＜ 50 mm2, 6D Single Core
Parameters:
| SKU Word | Phase Conductor | Neutral | Outside Diameter (inches) | Weight (lbs.
/1000ft.) | Ampacity
(Amps) Neutal |
| AWG | Strand | Insulation Thickness
(mils) | AWG | Strand | Insulation Thickness
(mils) | Direct Burial | In Duct |
| Tulsa | 4 | 7/w | 60 | 4 | 7/w | 60 | 0.893 | 258 | 119 | 85 |
| Dyke | 2 | 7/w | 60 | 4 | 7/w | 60 | 0.938 | 346 | 153 | 115 |
| Wittenburg | 2 | 7/w | 60 | 2 | 7/w | 60 | 0.973 | 375 | 153 | 115 |
| Notre Dame | 1/0 | 19/w | 80 | 2 | 7/w | 60 | 1.188 | 541 | 198 | 150 |
| Syracuse | 2/0 | 19/w | 80 | 1 | 19/w | 80 | 1.316 | 664 | 225 | 170 |
| Davidson | 3/0 | 19/w | 80 | 3/0 | 19/w | 80 | 1.487 | 874 | 250 | 195 |
| Wake Forest | 4/0 | 19/w | 80 | 2/0 | 19/w | 80 | 1.560 | 979 | 290 | 225 |
| Earlham | 4/0 | 19/w | 80 | 4/0 | 19/w | 80 | 1.623 | 1066 | 290 | 225 |
| Rust | 250 | 37/w | 95 | 3/0 | 19/w | 80 | 1.760 | 1203 | 325 | 245 |
| Slippery Rock | 350 | 37/w | 95 | 4/0 | 19/w | 80 | 1.945 | 1544 | 385 | 305 |
| Wofford | 500 | 37/w | 95 | 350 | 37/w | 95 | 2.348 | 2174 | 467 | 420 |
| Windham | 750 | 61/w | 110 | 500 | 37/w | 95 | 2.850 | 3147 | 615 | 492 |

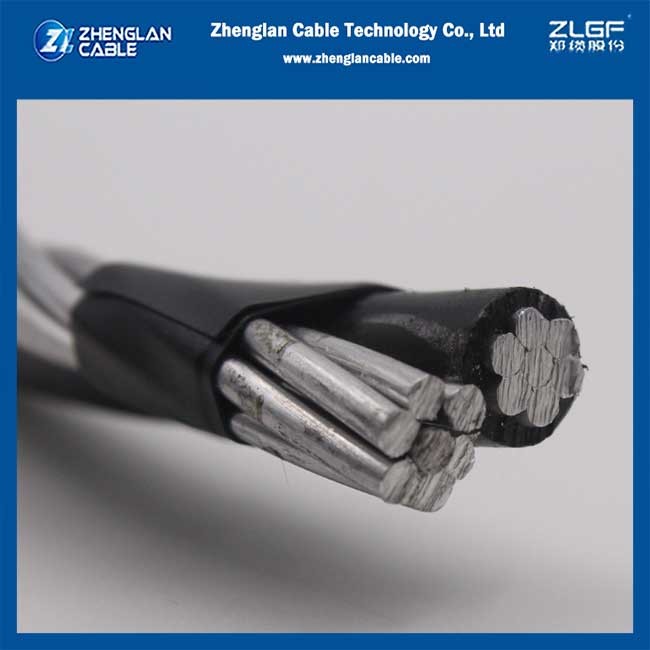

Products images:
Why Choose us:
- OEM/ODM services provided
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
- Strict quality control system, excellent quality with reasonable price.
FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
