1kv QUADRUPLEX SERVICE DROP CABLE Overhead Insulated Cable ABC Cable ICEA S-76-474
Application:
This quadruplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Structure
Conductor material: aluminum;
Insulation material: XLPE;
Temperature range
Minimum installation temperature: 0°C
Maximum operating temperature: +80°C
Minimum operating temperature: -25 °C
Minimum bending radius of circumscribed diameter
Installed cables: 6D ≤ 50 mm2
9D ＞50 mm2
4D Single Core
During installation: 9D ≥ 50 mm2
14D ＜ 50 mm2
6D Single Core
1kv QUADRUPLEX SERVICE DROP CABLE Overhead Insulated Cable ABC Cable ICEA S-76-474 Parameters:
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight/kft. (lbs.) | Allowable Ampacities* |
| Size | Stranding | Covering
Thickness(mill) | Size | Stranding | Rated Strength
(lbs.) | Poly | XLP | Poly | XLP |
| QUADRUPLEX SERVICE DROP – AAC NEUTRAL MESSENGER |
| Clydesdale | 4 | 1 | 45 | 4 | 7 | 881 | 198 | 199 | 80 | 100 |
| Pinto | 4 | 7 | 45 | 4 | 7 | 881 | 211 | 218 | 80 | 100 |
| Mustang | 2 | 7 | 45 | 2 | 7 | 1350 | 312 | 318 | 105 | 135 |
| Criollo | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 505 | 520 | 140 | 180 |
| Percheron | 2/0 | 19 | 60 | 2/0 | 7 | 2510 | 622 | 639 | 160 | 205 |
| Hanovarian | 3/0 | 19 | 60 | 3/0 | 19 | 3310 | 750 | 761 | 185 | 235 |
| Oldenburg | 4/0 | 19 | 60 | 4/0 | 19 | 4020 | 928 | 941 | 210 | 275 |
| Lippizaner | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 1519 | 1519 | 370 | 280 |

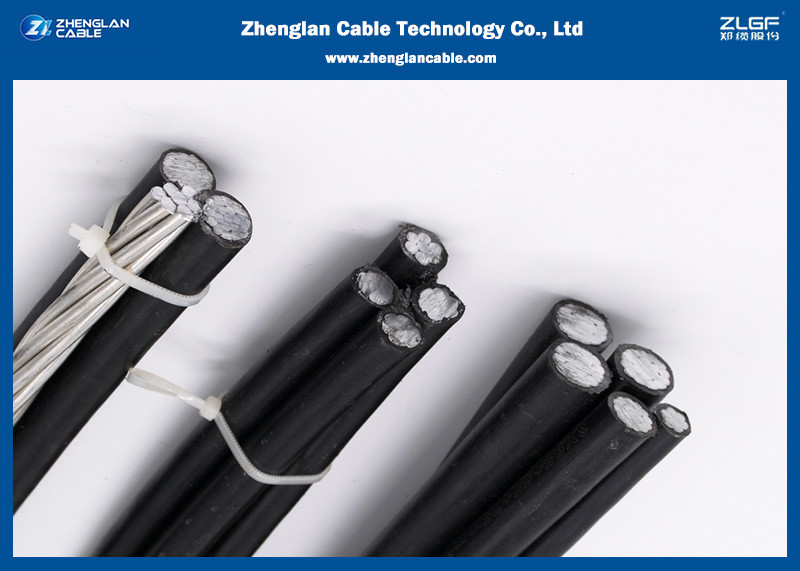

1kv QUADRUPLEX SERVICE DROP CABLE Overhead Insulated Cable ABC Cable ICEA S-76-474 Products images:
Why Choose Zhenglan Cable:
- OEM/ODM services provided
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
- Strict quality control system, excellent quality with reasonable price.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
