AAAC 240mm2 All Aluminum Alloy Conductor BS50182 / ASTM 399 / 399M / IEC 61089

  • 1
  • 2

Brand Name : Zhenglan Cable

Model Number : AAAC240mm2(37/2.87mm) overhead bare aluminum alloy conductor BS50182/ASTM399/399M/IEC61089

Certification : 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin : Henan, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T,

Delivery Time : 10-20 days

Packaging Details : Wooden drum, wood and steel drum,as customer's request

Material : Aluminium Alloy

Core : Normal or Customized

Conductivity : 52.5%

characted : Bare Conductor

Nominal Area : 18.4~1439mm²

Port of shipment : Qingdao

Contact Now

AAAC240mm2(37/2.87mm) overhead bare aluminum alloy conductor BS50182/ASTM399/399M/IEC61089

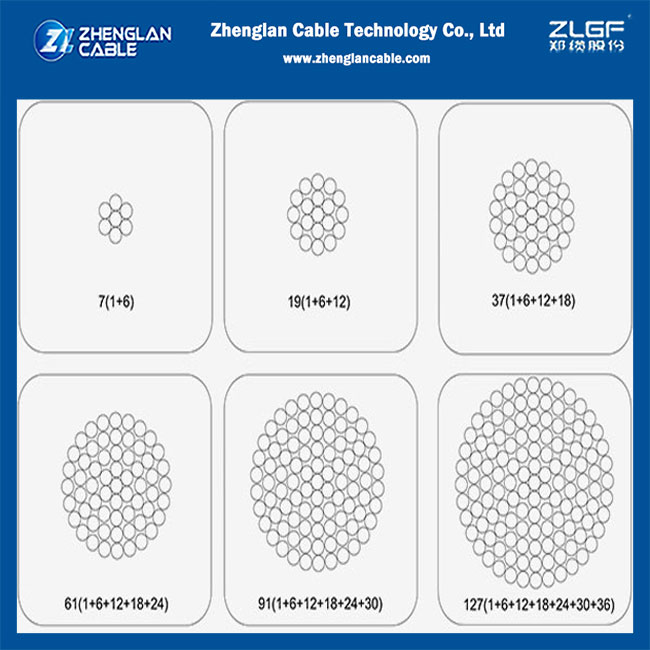

AAAC120mm2(19/2.8mm) overhead bare aluminum alloy conductor BS50182 are formed by high strength Aluminium-Magnesium-Silicon alloy 6201-T81. They are usually used as bare overhead conductor for primary and secondary distribution. Most common constructions consist of 7, 19, 37 and 61 wires.



STANDARD

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.



CONSTRUCTION

AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.

This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.



(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.



ELECTRICAL PROPERTIES

density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
resistivity@20°C 0.0326 Ohms mm2/m
linear Expansivity

23 x10-6 (°C)





SERVICE CONDITIONS

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 - 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%




AAAC240mm2(37/2.87mm) overhead bare aluminum alloy conductor BS50182/ASTM399/399M/IEC61089

CONSTRUCTION PARAMETERS



Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance
  mm2 No.x mm mm Kg/Km KN Ω/Km
240 239.4 37/2.87 20.1 659.4 70.61 0.1387



AAAC240mm2(37/2.87mm) overhead bare aluminum alloy conductor BS50182/ASTM399/399M/IEC61089 images



AAAC 240mm2 All Aluminum Alloy Conductor BS50182 / ASTM 399 / 399M / IEC 61089

AAAC 240mm2 All Aluminum Alloy Conductor BS50182 / ASTM 399 / 399M / IEC 61089



AAAC 240mm2 All Aluminum Alloy Conductor BS50182 / ASTM 399 / 399M / IEC 61089





     Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
