1core PV cable EN50618 H1Z2Z2-K Photovoltaic cables China factory
Application
The 4mm² cross-sectional area design takes into account both high current carrying capacity and wiring convenience, and is suitable for scenarios such as photovoltaic array series connection, inverter docking, energy storage systems and distributed power stations, and fully covers the needs of household roofs, industrial and commercial power stations and large photovoltaic parks. The flexible sheath is kink-resistant, easily handles complex wiring, and reduces construction costs.
Tinned copper core, excellent anti-oxidation performance, more stable conductivity, reduce long-term use loss, and extend system life.
• Double-layer cross-linking: inner cross-linked polyolefin (XLPO) insulation + outer cross-linked polyolefin sheath, high temperature resistance (-40℃~120℃), UV resistance, acid and alkali resistance and mechanical wear resistance, double protection against outdoor extreme environments, no fear of wind and snow erosion.
Standard
EN50618, 2Pfg-1169
SPECIFICATION
Nominal Voltage: DC 1.5KV/ 1.8KV, AC 0.6/1.0KV
Ambient Temperature: -40ºC~+90ºC
Max.Temperature at conductor: +120ºC
Service life: >25 years ( -40ºC~+90ºC)
Withstand voltage(V/5min): AC6500
Min bending radius(mm) : 5*D
CONSTRUCTION
1. class 5 tinned copper conductor
2. insulation: XLPO
3. sheath:XLPO
1core PV cable EN50618 H1Z2Z2-K Photovoltaic cables China factory PARAMETERS
| Construction | Wire strand maximum size(≤) | Conductor approx. diameter | Minimum Insulation thickness (≥) | Minimum outer sheath thickness (≥) | Cable outer diameter | Maximum resistance Max.(≤) | Current Carring Capacity AT 60℃ |
| mm² | mm | mm | mm | mm | mm | Ω/Km | A |
| 1X4.0 | 0.31 | 2.4 | 0.53 | 0.58 | 5.5 | 5.09 | 55 |

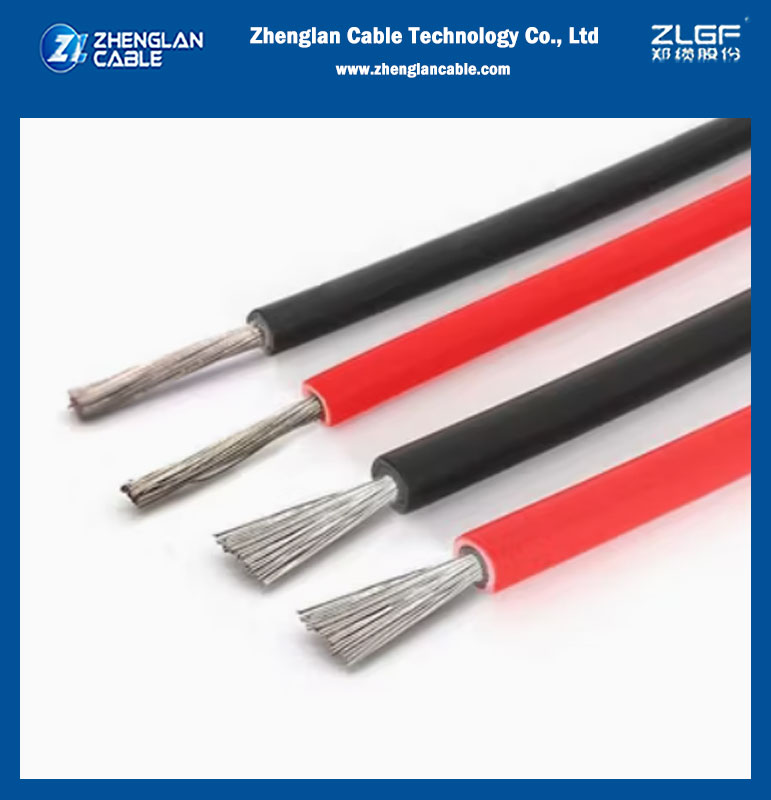

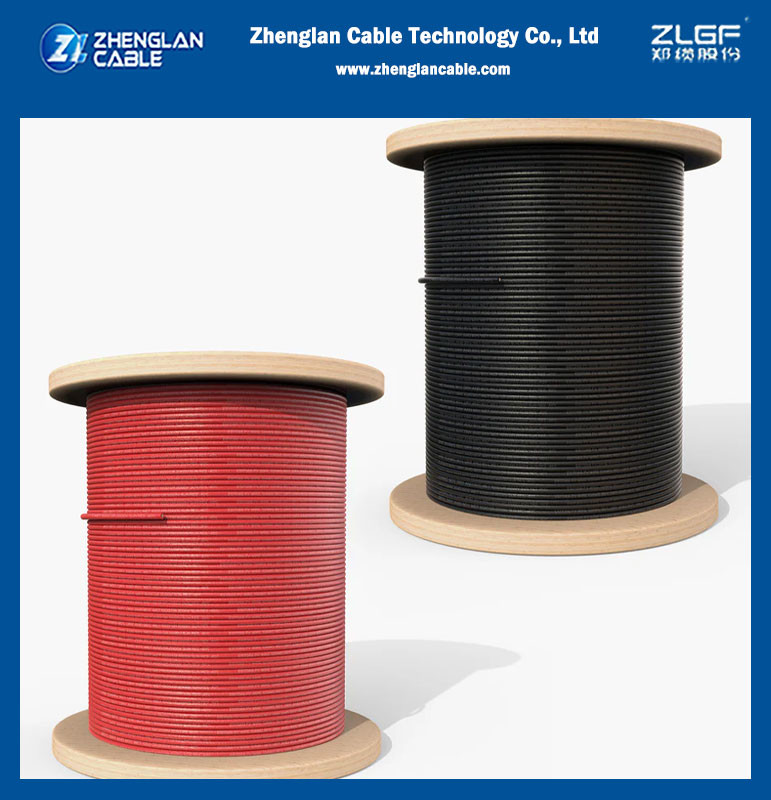

1core PV cable EN50618 H1Z2Z2-K Photovoltaic cables China factory images:
