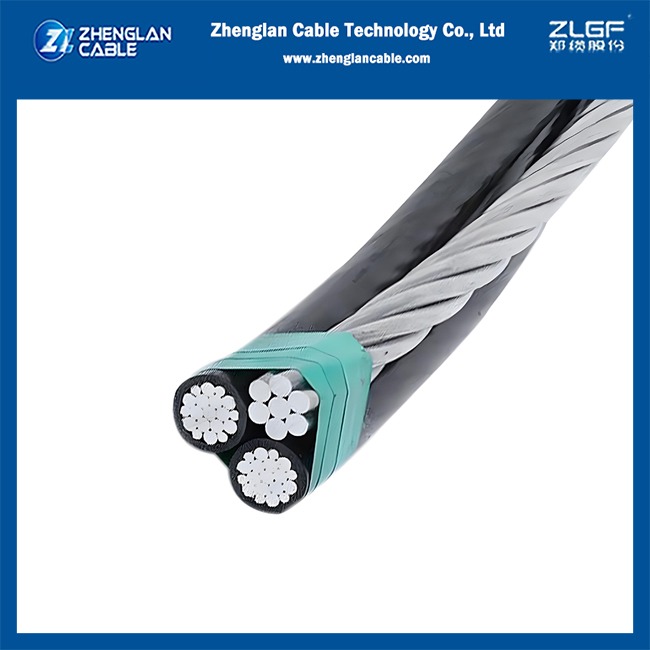

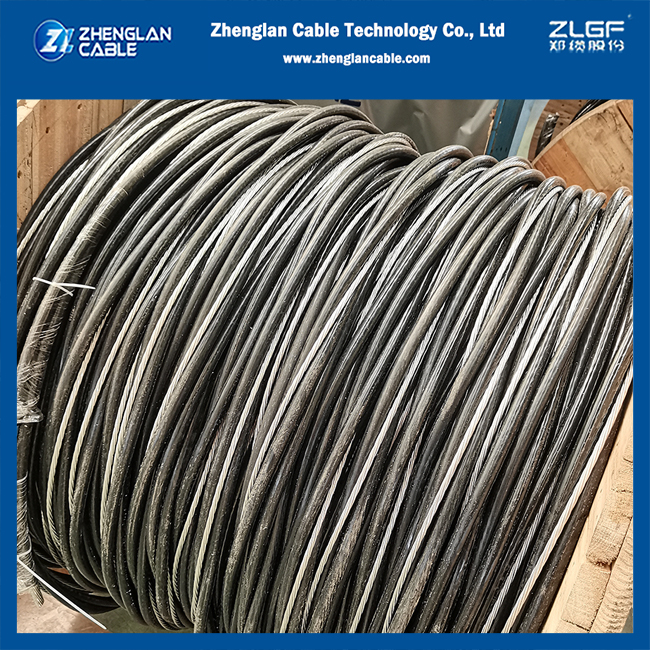

1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474
Aerial bundled cables (also simply as ABC) is built for use outside and is most often found in overhead electrical distribution in homes, businesses, and industrial plants. They are overhead power lines using several insulated phase conductors bundled tightly together, with or without a bare/insulated neutral conductor and/or insulated lighting cable .
Important cable characteristics are :
Ultraviolet radiation resistance,
Ozone resistance,
High dielectric strength,
Light and easy to handle.
Installation: These cables are NOT ALLOWED to be buried, even in conduits.
1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474 structure
Conductor: Phase: Aluminium conductor, round stranded compressed (RM). Neutral: bare ACSR
Insulation: XPLE compound, UV-resistant.
Core Identification: 1, 2, 3.........
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 3.5 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Standard: ANSI/ICEA S-76-474,
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560 etc.
1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474 technical data
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight/kft. (lbs.) | Allowable Ampacities* |
| Size | Stranding | Covering
Thickness
(mil) | Size | Stranding | Rated Strength
(lbs.) | Poly | XLP | Poly | XLP |
| Runcina | 2/0 | 7 | 60 | 2/0 | 6/1 | 5310 | 519 | 530 | 185 | 235 |
